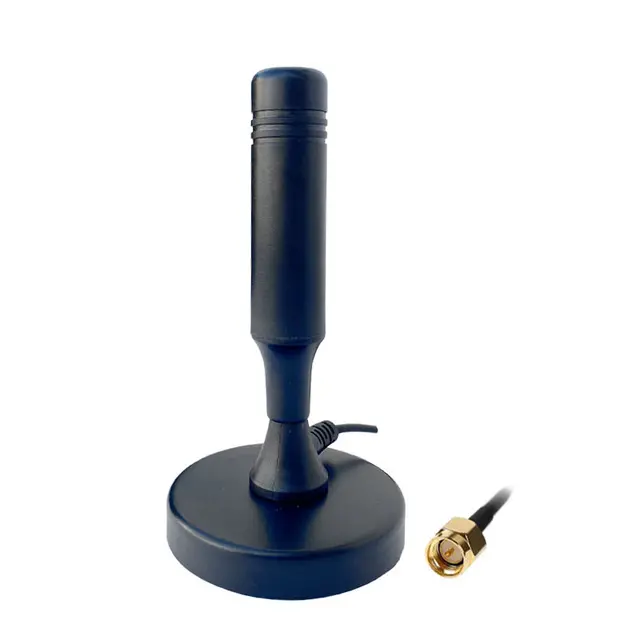

174-230 470-862MHz DVB-T Magnetic Antenna

Electrical
Frequency Range	VHF174-230MHz/UHF470-862MHz
Gain	5dBi
V.S.W.R	≤2.0
Radiation	Omni-Direction
Polarization	Vertical
Impedance	75Ώ
Maximum Input Power	50W
Cable Length	1.5m or can be customization
Cable Type	RG174/RG58U
Connector	SMA Male
Antenna Radome Material	ABS
Mount way	Magnetic
Mechanical
Dimensions	Φ65x115mm
Weight	150g
Operating Temperature	-40℃ to+70℃
RoHS Compliant	YES
